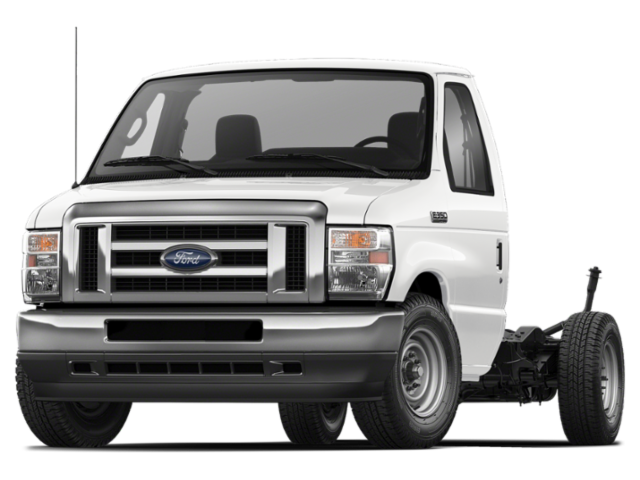

New 2026 Ford E-350SD Base
VIN: 1FDEE3FN2TDD27309
Stock: G12783
Exterior:
White
Drivetrain:
RWD
Interior:
Medium Flint
Transmission:
6-Speed Automatic with Overdrive
Engine:
7.3L V8
Vehicle Details:
Black Front Bumper w/Black Rub Strip/Fascia Accent
Black Side Windows Trim and Black Front Windshield Trim
Black Door Handles
Light Tinted Glass
Variable Intermittent Wipers
Front Windshield -inc: Sun Visor Strip
Fully Galvanized Steel Panels
Black Grille
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
Manual Tilt/Telescoping Steering Column
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp and Trip Odometer
4G LTE Embedded Modem Selective Service Internet Access
Front Cupholder
Manual Air Conditioning
Glove Box
Front Vinyl Headliner
Urethane Gear Shifter Material
Partial Floor Console w/Storage and 2 12V DC Power Outlets
Regular Dome Lighting
Front Black Vinyl Floor Covering
Fleet Telematics Modem Tracker System
Driver And Passenger Door Bins and 1st Row Underseat Storage
Manual 1st Row Windows
Driver Information Center
Analog Appearance
Fixed Front Head Restraints
Driver And Front Passenger Armrests
2 12V DC Power Outlets
2 Speakers
Fixed Antenna
Engine: 7.3L V8 Port Fuel Injected Gasoline
4.10 Axle Ratio
50 State Emission System
Transmission w/Driver Selectable Mode and Oil Cooler
Rear-Wheel Drive
78-Amp/Hr 750CCA Maintenance-Free Battery
HD 210 Amp Alternator
HD Gas-Pressurized Shock Absorbers
Hydraulic Power-Assist Steering
Single Stainless Steel Exhaust
Front Suspension w/Coil Springs
Solid Axle Rear Suspension w/Leaf Springs
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs and Hill Hold Control
Side Impact Beams
Automatic Emergency Braking (AEB) Oncoming
Collision Mitigation-Front
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
Vehicle Name: Ford E-Series Cutaway
Body Style: Chassis
Body Code: H
Drivetrain: Rear Wheel Drive
Passenger Capacity: 2
Base Curb Weight: 4907
Gross Axle Wt Rating - Front: 4200
Gross Axle Wt Rating - Rear: 6084
Curb Weight - Front: 2940
Curb Weight - Rear: 1967
Gross Vehicle Weight Rating Cap: 10050
Gross Combined Wt Rating: 18500
Dead Weight Hitch - Max Trailer Wt.: 5000
Dead Weight Hitch - Max Tongue Wt.: 500
Wt Distributing Hitch - Max Trailer Wt.: 8450
Wt Distributing Hitch - Max Tongue Wt.: 845
Maximum Trailering Capacity: 8450
Engine Order Code: 99N
Engine Type: Regular Unleaded V-8
Displacement: 7.3 L/445
Fuel System: Sequential MPI
SAE Net Horsepower @ RPM: 325 @ 3750
SAE Net Torque @ RPM: 450 @ 3750
Trans Order Code: 44P
Trans Type: 6
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 3.97
Second Gear Ratio (:1): 2.32
Third Gear Ratio (:1): 1.52
Fourth Gear Ratio (:1): 1.15
Fifth Gear Ratio (:1): 0.86
Sixth Gear Ratio (:1): 0.67
Reverse Ratio (:1): 3.13
Trans PTO Access: No
Transfer Case Model: None
Transfer Case Power Take Off: No
Cold Cranking Amps @ 0° F (Primary): 750
Cold Cranking Amps @ 0° F (2nd): 750
Maximum Alternator Capacity (amps): 210
Engine Oil Cooler: None
Suspension Type - Front: Other
Suspension Type - Rear: Leaf
Spring Capacity - Front: 4200
Spring Capacity - Rear: 6084
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front: 5000
Axle Capacity - Rear: 7800
Axle Ratio (:1) - Front: 4.10
Axle Ratio (:1) - Rear: 4.10
Front Tire Order Code: T38
Rear Tire Order Code: T38
Spare Tire Order Code:
Front Tire Size: LT245/75SR16
Rear Tire Size: LT245/75SR16
Spare Tire Size:
Front Tire Capacity: 4600
Rear Tire Capacity: 6084
Revolutions/Mile @ 45 mph - Front: 677
Revolutions/Mile @ 45 mph - Rear: 677
Front Wheel Size: 16 X 7
Rear Wheel Size: 16 X 7
Spare Wheel Size:
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material:
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb: 48.6
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 13.6
Rear Brake Rotor Diam x Thickness: 13.6
Drum - Rear (Yes or ):
Rear Drum Diam x Width:
Fuel Tank Capacity, Approx: 40
Front Head Room: 42
Front Leg Room: 42.1
Front Shoulder Room: 68.1
Front Hip Room: 65.6
Wheelbase: 138
Length, Overall: 241.1
Width, Max w/o mirrors: 79.4
Height, Overall: 80.4
Overhang, Rear w/o bumper: 68.5
Cab to Axle: 80
Cab to End of Frame: 148.5
Ground to Top of Load Floor: 25.9
Model Group: Econoline
Vehicle Segment: Chassis
Vehicle Type: Chassis
Body Cab Style: Chassis
Engine Displacement Units: 7.3
Engine Camshaft: OHV
Engine Block Type: iron
Engine Cylinder Count: 8
Engine Valve Count: 2
Country of Origin: United States Ford Incomplete Vehicle
Radio: AM/FM Stereo w/Clock Display & 2 Speakers
Front Black Vinyl Floor Covering
Dual High Back Buckets
Vinyl Bucket Seats
4.10 Axle Ratio
Driver Air Bag
A/C
ABS
4-Wheel Disc Brakes
Rear Wheel Drive
8 Cylinder Engine
Gasoline Fuel
Daytime Running Lights
Bucket Seats
Power Steering
Adjustable Steering Wheel
Tires - Front All-Season
Tires - Rear All-Season
Traction Control
6-Speed A/T
Intermittent Wipers
A/T
Variable Speed Intermittent Wipers
Automatic Headlights
Steel Wheels
Auxiliary Audio Input
Front Collision Mitigation
